TGB

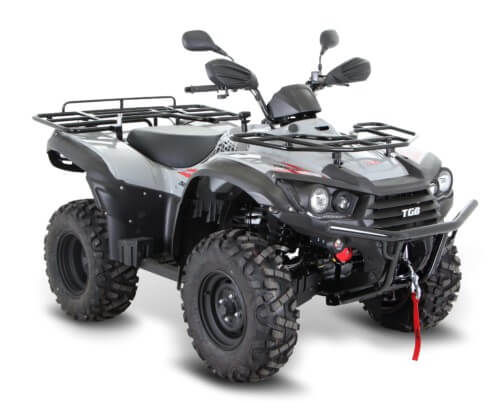

Blade 520SL
The Blade series has been sold worldwide now for over 20 years. The 520SL is the latest edition to the agricultural lineup. A combination of elements developed over a decade of hard work within the agricultural industry, the 520SL boasts a long list of key features. This workhorse ATV is ideal for any agricultural situation.
Powered by the tried and tested TGB 503cc high torque engine, but now equipped with Electronic fuel injection.
The Blade 520SL is T3 homologated so can be registered for road use.
Top Features
503cc
4-Stroke V-Twin
Optional Electric
Power Steering
Switchable
4 Wheel Drive
12 Inch Wheels
Electronic Winch
Road Legal
Spec List
| Bore & Stroke | 92 X 75.6 mm |
| Capacity | 503cc |
| Clutch | Automatic - CVT |
| Compression Ratio | 9.9 |
| Cooling | Liquid Cooled |
| Drive Type | 2/4 Wheel Drive Selectable |
| Dry Weight Mass | 330 kg |
| Electric Power Steering | Optional |
| Electrical Outlet Connector | DC 12V 10A 120W |
| Electronic Fuel Injection | Yes |
| Engine Type | 4-Stroke Single Cylinder |
| Final Drive | Shaft |
| Front Brakes | Disc |
| Front Shock Absorbers | Preload Adjustable Hydraulic |
| Front Suspension | Independant Double A Arm |
| Front Tyre Size | AT25 x 8-12 |
| Fuel System | Carburettor |
| Fuel Tank Capacity | 18 Litres |
| Gear Selection | L/H/N/R |
| Gearbox | Automatic Gears |
| Ground Clearance | 305mm |
| Max Power | 35HP (OFF ROAD) |
| Max Torque | 39.2 NM |
| Overall Height | 1250 mm |
| Overall Length | 2155 mm |
| Overall Width | 1235 mm |
| Rear Brakes | Disc |
| Rear Shock Absorbers | Preload Adjustable Hydraulic |
| Rear Suspension | Independant Double A Arm |
| Rear Tyre Size | AT25 x 10-12 |
| Seat Height | 920 mm |
| Start Type | Electric Start |
| Tow Hitch | Yes |
| Transmission Type | V-belt CVT Automatic |
| Tyre Brand | Innova |
| Unbraked Towing Capacity | 850 kg |
| Warranty | 5 Year Manufacturer Limited Warranty |
| Wheel Size | 12 Inch |
| Wheel Type | Steel |
| Winch | Yes |
