TGB

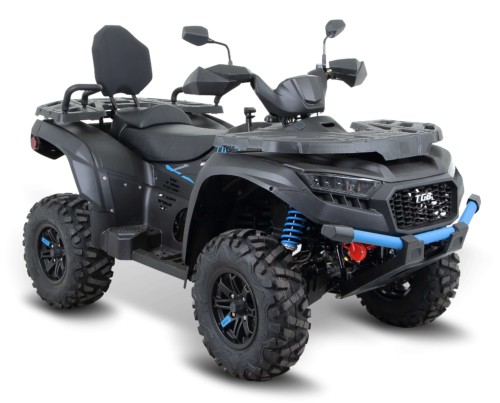

Blade 600 LTX
The Blade 600 LTX is the latest generation of TGB`s flagship machine. The new LTX has had a facelift, with new hi-lite LED front lights seated in a more aggressive front body panel. The new front lights also incorporate LED strip indicators.
The Blade series head up the next generation in the ATV technology with unrivalled levels of specification, and deliver excellent value for money. Equipped with high torque engines these machines are built to cope with the most severe conditions.
Designed to withstand the rigours of the every day use required on a working farm. Powered by a high torque 561cc Liquid cooled engine that gives great power and throttle response for when manoeuvring through tough terrain. Suitable for all aspects of farm, small holding and leisure use. Ideal for towing and commercial tasks
See The Blade
In Action
View the Blade 600LTX Quad Bike in action. Over 50 years experience in producing market leading products!
Top Features
Spec List
Capacity | 561cc |
Clutch | Automatic - CVT |
Cooling | Liquid Cooled |
Dimensions L / W / H | 2280 x 1250 x 1280 mm |
Drive Type | 2/4 Wheel Drive Selectable |
Electric Power Steering | Yes |
Engine Type | 4-Stroke Single Cylinder |
Euro 4 | Yes |
Final Drive | Shaft |
Front Brakes | Disc |
Front Shock Absorbers | Preload Adjustable Hydraulic |
Front Suspension | Independant Double A Arm |
Front Tyre Size | AT25 x 8-12 |
Front Wheel Size | 12 Inch |
Fuel System | EFI - Electronic Fuel Injection |
Fuel Tank Capacity | 18 Litres |
Gearbox | Automatic Gears |
Gross Weight | 387 KG |
Ground Clearance | 320 mm |
Ground Clearance | 320 mm |
Max Power | 43HP (OFF ROAD) |
Max Torque | 53.6 NM |
Rear Brakes | Disc |
Rear Shock Absorbers | Preload Adjustable Hydraulic |
Rear Suspension | Independant Double A Arm |
Rear Tyre Size | AT25 x 10-12 |
Rear Wheel Size | 12 Inch |
Start Type | Electric Start |
Tyre Brand | Maxxis |
Unbraked Towing Capacity | 850 kg |
Warranty | 5 Year Manufacturer Limited Warranty |
Wheel Size | 12 Inch |
Wheel Type | Aluminium |
