TGB

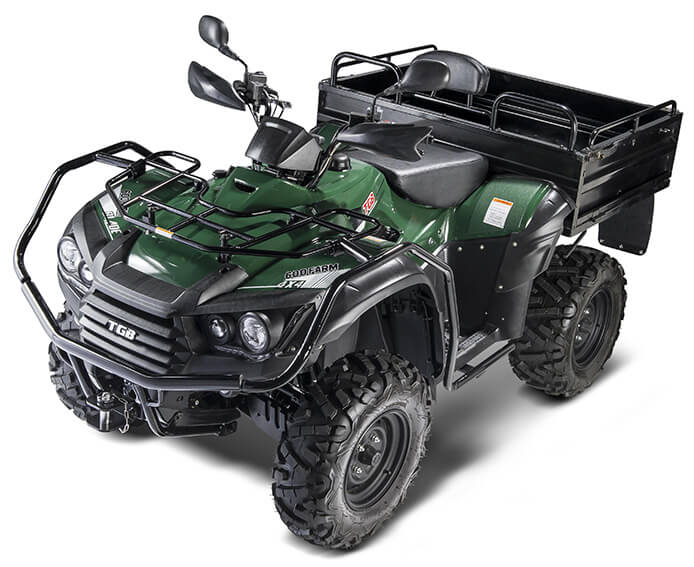

LandMaster 600
The LandMaster 600 is the Ultimate tool for any farm or small holding. The LandMaster has all the function and capability of a UTV with the agility and manoeuvrability of an ATV.
This fantastic model is powered by the latest TGB 561cc liquid cooled EFI engine. It is fitted with the patented TGB 3 stage Electronic Power steering and also comes as standard with a 3500LB front mounted electronic winch.

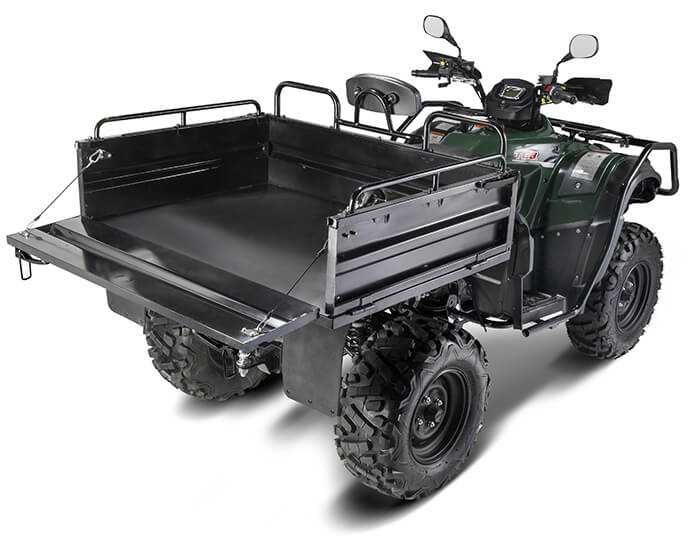

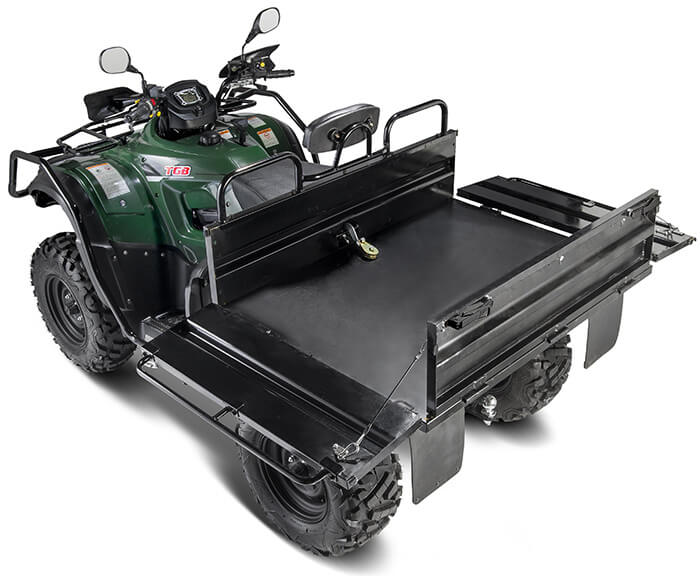

The rear cargo tray opens on 3 sides which makes loading very easy.
Top Features
561cc
4-Stroke V-Twin
Front Differential
Switchable
4 Wheel Drive
12 Inch Wheels
Electronic Winch
Road Legal
Spec List
| Bore & Stroke | 95 x 79.2 mm |
| Capacity | 561cc |
| Clutch | Automatic - CVT |
| Compression Ratio | 10.2 |
| Cooling | Liquid Cooled |
| Drive Type | 2/4 Wheel Drive Selectable |
| Dry Weight Mass | 454 kg |
| Electric Power Steering | Yes |
| Electrical Outlet Connector | DC 12V 10A 120W |
| Engine Type | 4-Stroke Single Cylinder |
| Final Drive | Shaft |
| Front Brakes | Disc |
| Front Shock Absorbers | Preload Adjustable Hydraulic |
| Front Suspension | Dual A-arm |
| Front Tyre Size | AT25 x 8-12 |
| Front Wheel Size | 12" |
| Fuel System | EFI - Electronic Fuel Injection |
| Fuel Tank Capacity | 18 Litres |
| Gear Selection | L/H/N/R/P |
| Gearbox | Automatic Gears |
| Ground Clearance | 320 mm |
| Max Power | 43HP (OFF ROAD) |
| Max Torque | 53.6 NM |
| Overall Height | 1280 mm |
| Overall Length | 2550 mm |
| Overall Width | 1290 mm |
| Rear Brakes | Disc |
| Rear Shock Absorbers | Preload Adjustable Hydraulic |
| Rear Suspension | Independant Double A Arm |
| Rear Tyre Size | AT25 x 10-12 |
| Rear Wheel Size | 12" |
| Start Type | Electric Start |
| Throttle Type | Thumb Throttle |
| Tow Hitch | Yes |
| Transmission Type | V-belt CVT Automatic |
| Tyre Brand | Innova |
| Unbraked Towing Capacity | 850 kg |
| Warranty | 5 Year Manufacturer Limited Warranty |
| Wheel Size | 12 Inch |
| Wheel Type | Steel |
